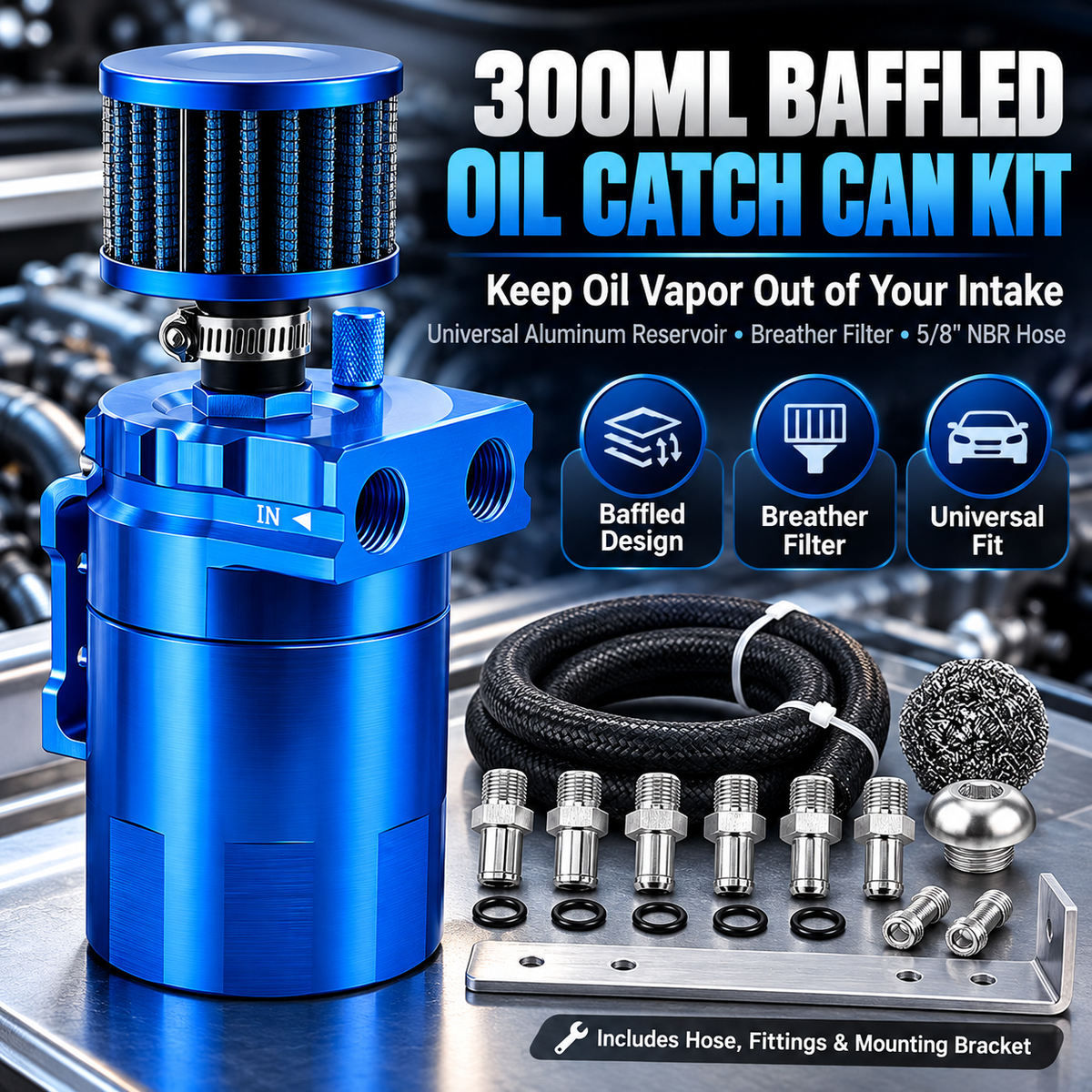

300ML Baffled Oil Catch Can Kit – Help Protect Your Engine Intake from Oil Vapor

300ML Baffled Oil Catch Can Kit – Help Protect Your Engine Intake from Oil Vapor

 (7356 Reviews)
MADE IN Los Angeles, CA
SHOPIFY SECURE
$45.99
$45.99 $89.99
SAVE 48% Sold out

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

300ML Baffled Oil Catch Can Kit – Help Protect Your Engine Intake from Oil Vapor

300ML Baffled Oil Catch Can Kit – Help Protect Your Engine Intake from Oil Vapor

$45.99
$45.99 $89.99
SAVE 48% Sold out

GLOBAL DELIVERY

Worldwide Shipping

Fast dispatch with tracking updates

READY TO SHIP

24–48H
300ML • BAFFLED • COMPLETE HOSE KIT

Keep Oil Vapor Out of Your Intake

A compact 300ML baffled oil catch can designed to help separate oil mist and moisture from crankcase vapor before they reach your intake system.

✓ Removable internal baffle with filter media
✓ Breather filter included for compatible vented setups
✓ 5/8' ID NBR hose & installation hardware included

Cleaner Airflow Starts Before the Intake

Crankcase ventilation can carry a mixture of oil vapor, moisture and contaminants back toward the intake.

The catch can gives these vapors a place to cool and separate, helping collect unwanted residue before it continues through the intake path.

BAFFLED SEPARATION

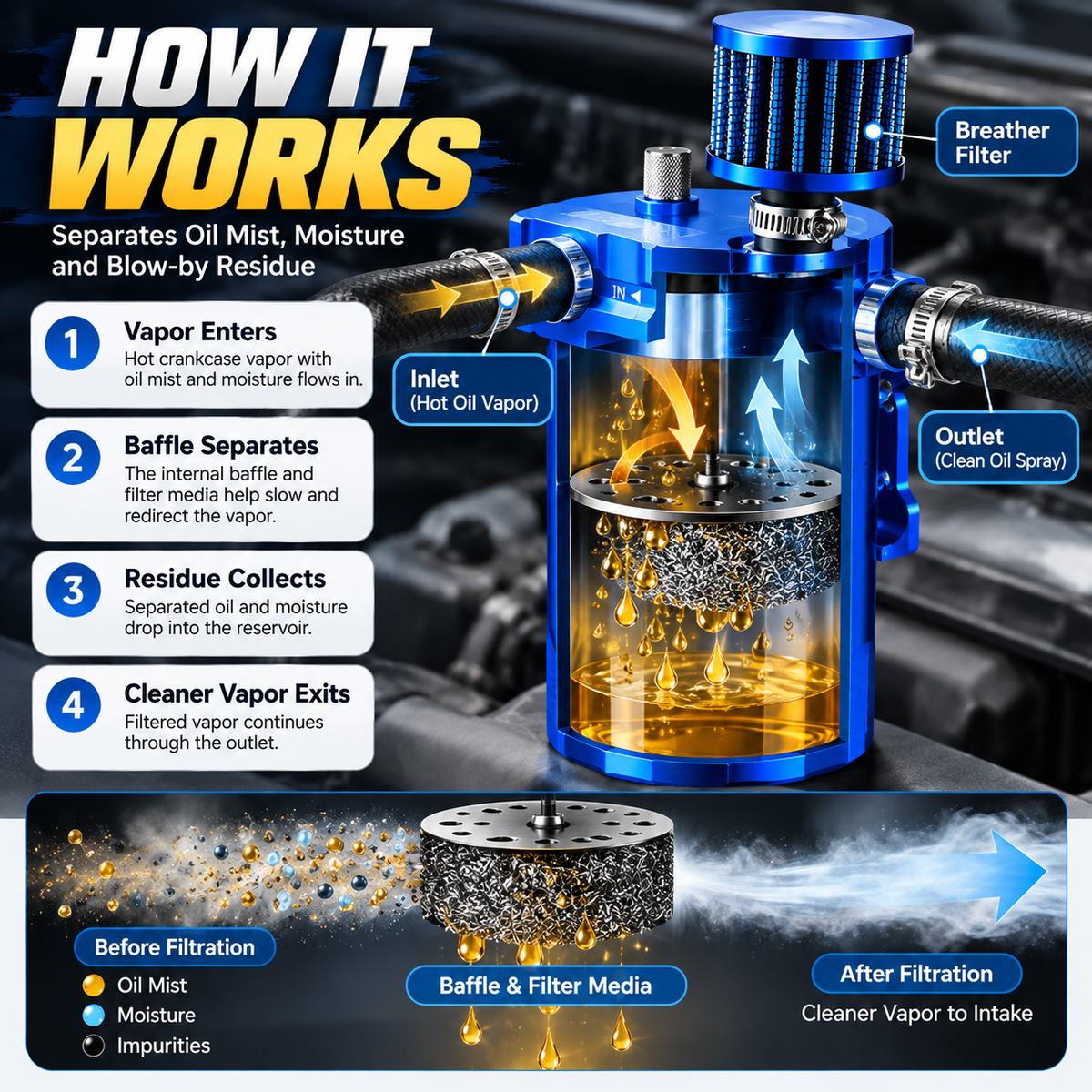

How the Catch Can Works

Hot crankcase vapor enters the can, passes through the internal baffle and filter media, then changes direction inside the chamber.

1. Vapor Enters
Oil mist and moisture travel into the inlet.
2. Baffle Separates
The internal structure helps slow and redirect the vapor.
3. Residue Collects
Separated oil and moisture settle in the lower reservoir.
4. Cleaner Vapor Exits
The remaining vapor continues through the outlet.

FLEXIBLE INSTALLATION

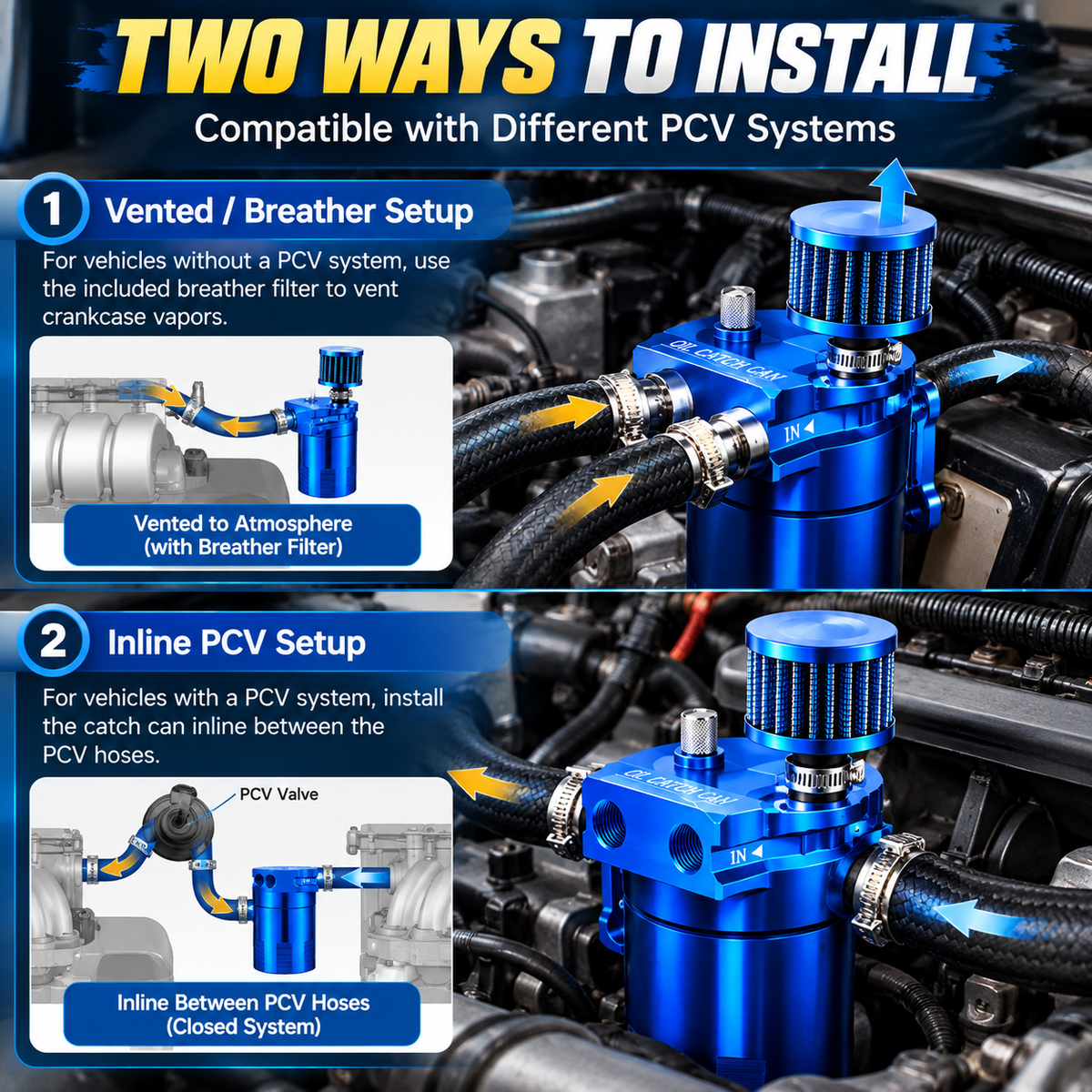

Two Common Installation Configurations

01 — Vented / Breather Setup For compatible applications that use an open crankcase ventilation arrangement, the supplied breather filter can be fitted to the catch can.
02 — Inline PCV Setup The catch can may also be installed inline between compatible PCV hoses as part of a closed routing configuration.

Always confirm the correct crankcase ventilation routing for your specific vehicle before installation.

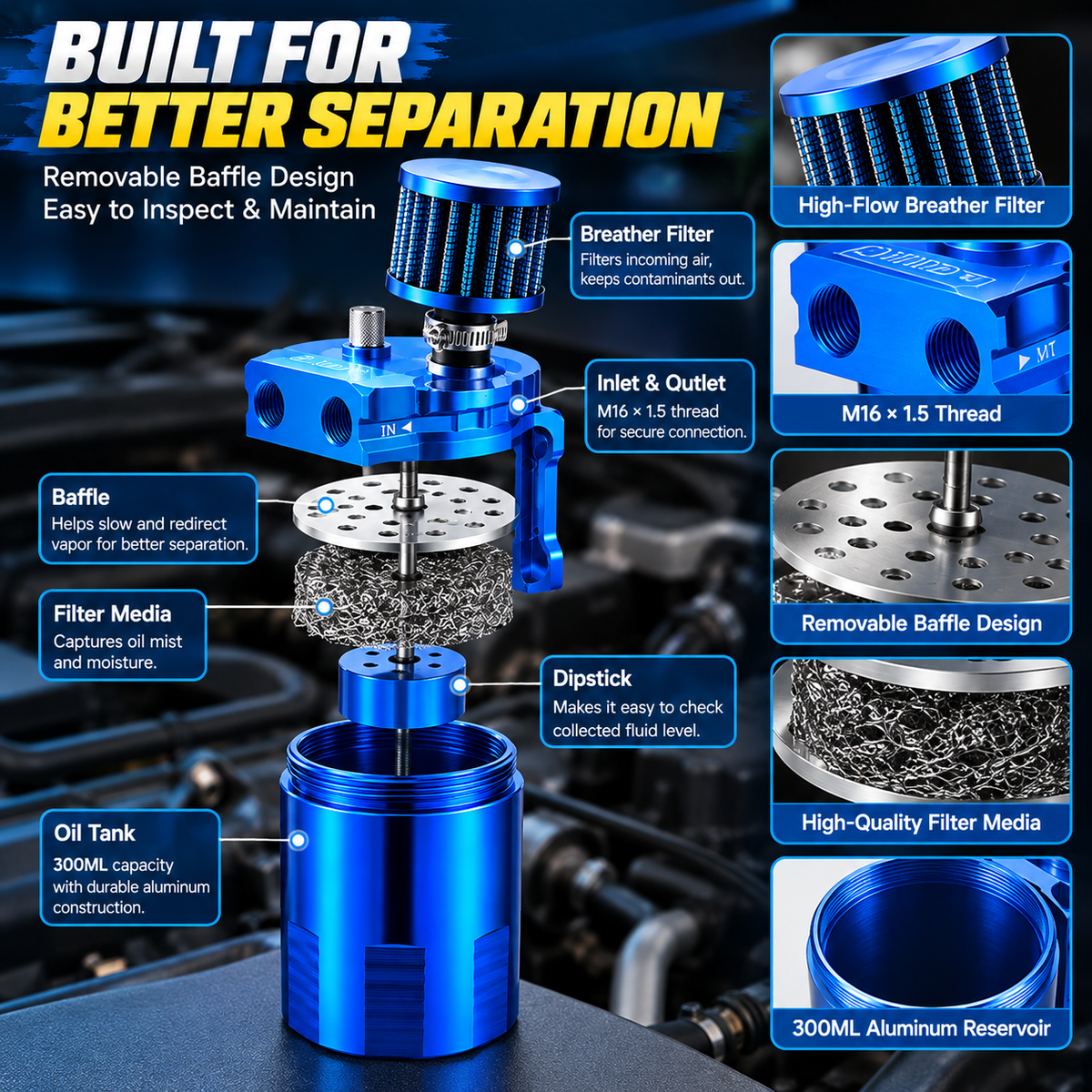

Built Around a Removable Baffle

Unlike a simple empty reservoir, this design uses a removable internal baffle and filter media to provide more surface area for oil mist and moisture to separate from the vapor stream.

Exploded diagram of aluminum oil catch can with removable baffle
Breather Filter Included for compatible vented configurations.
Removable Baffle Designed to help separate suspended oil mist.
Dipstick Makes it easier to monitor collected fluid.
300ML Reservoir Compact size with useful collection capacity.

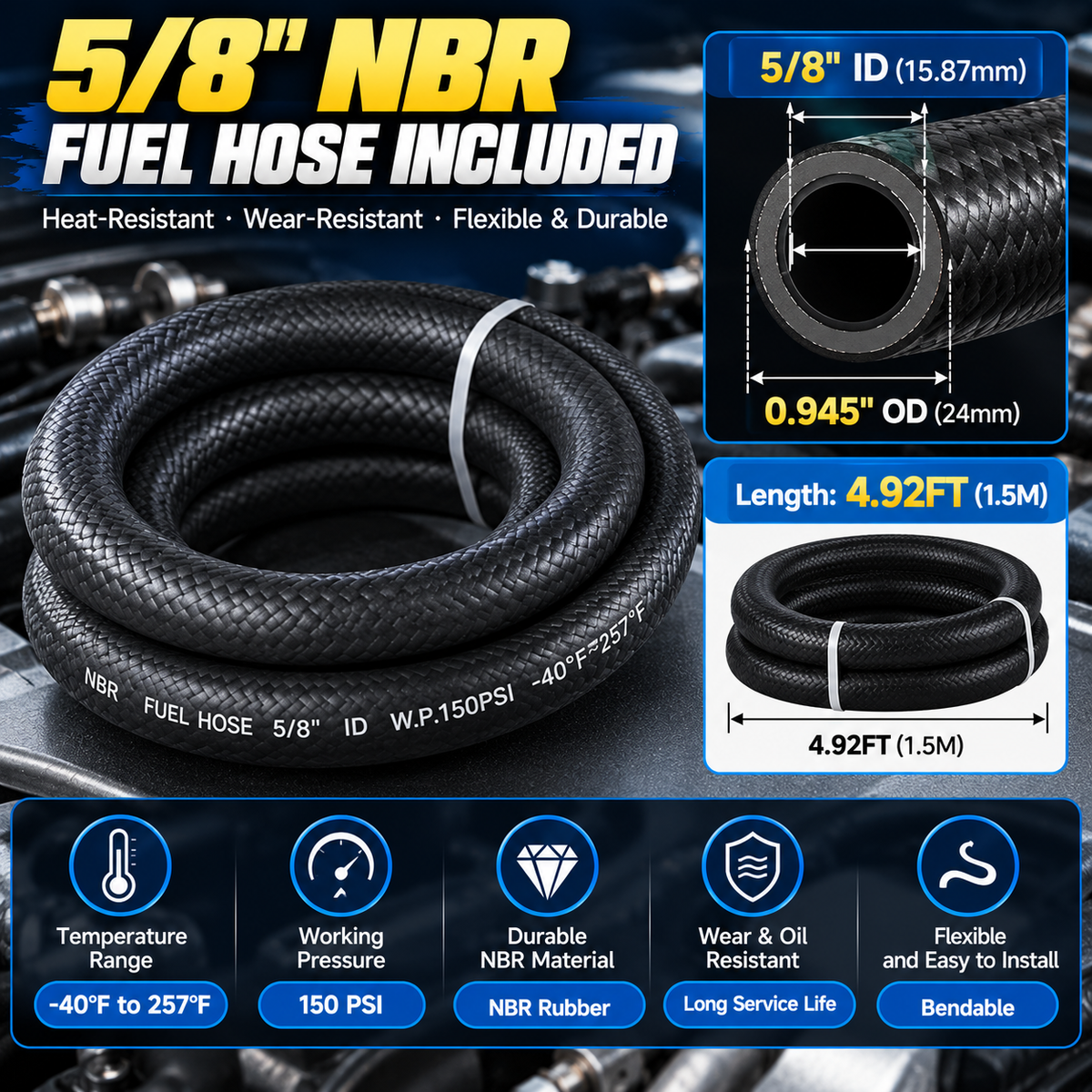

HEAVY-DUTY HOSE INCLUDED

5/8' NBR Fuel Hose Kit

The included NBR rubber hose offers good resistance to heat, abrasion and automotive fluids, giving you a durable connection for compatible catch-can installations.

ID
5/8' / 15.87 mm
OD
0.945' / 24 mm
Length
59' / 1.5 m
Working Pressure
150 PSI
Temperature
-40°F to 257°F
Material
NBR Rubber

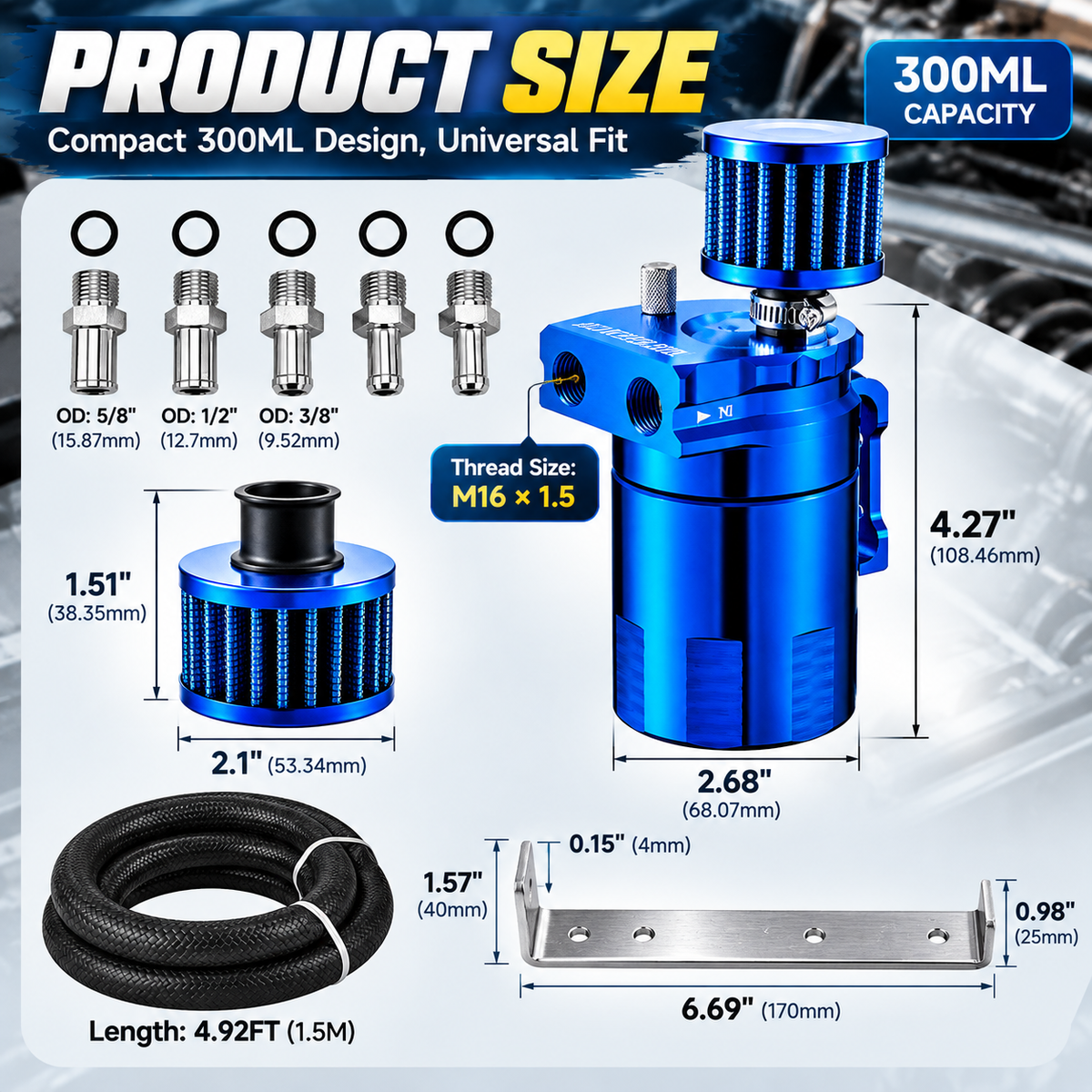

Universal 300ML Design

Designed for a wide range of automotive applications, the compact aluminum reservoir can be positioned in many engine bays where adequate mounting space is available.

  • ✓ 300ML catch-can capacity
  • ✓ M16 × 1.5 inlet/outlet threads
  • ✓ Multiple supplied hose adapters
  • ✓ Metal mounting bracket included

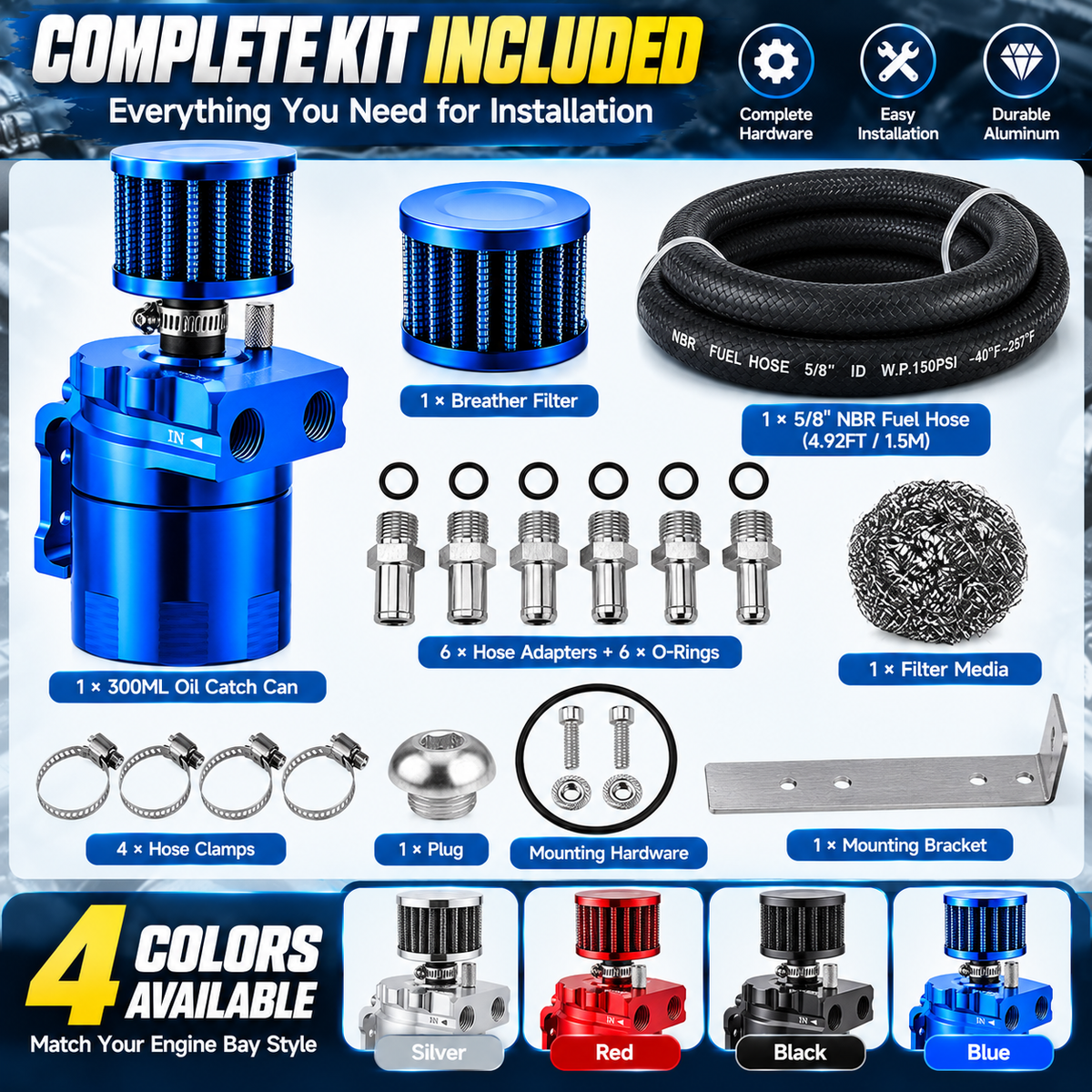

Complete Installation Kit

Everything shown is organized into one kit so you have the core components needed for a compatible installation.

Package Includes:
• 300ML aluminum catch can
• Breather filter
• 5/8' ID NBR hose
• Hose adapters & O-rings
• Hose clamps
• Internal filter media
• Mounting bracket & hardware

IMPORTANT COLD-WEATHER MAINTENANCE

Check It More Often Below Freezing

In freezing temperatures, crankcase ventilation systems can generate increased condensation. Water collected inside the catch can may freeze and create a restriction if maintenance is neglected.

For cold-weather use: inspect and empty the catch can frequently. Weekly cleaning is recommended in freezing conditions, or reinstall the original PCV routing when appropriate for your vehicle.

CLEANER CRANKCASE VAPOR MANAGEMENT

Upgrade Your PCV Setup

Add a baffled collection stage between crankcase vapor and your intake with a complete, compact installation kit.

🔧 Complete Hardware Kit
🧶 Heavy-Duty NBR Hose
⚙️ Removable Baffled Design
Fitment Note: This is a universal automotive component. Please verify engine-bay space, hose routing, fitting compatibility and your vehicle's PCV configuration before installation. Installation requirements vary by vehicle. Modification of crankcase ventilation or emissions-related systems may be subject to local regulations.
